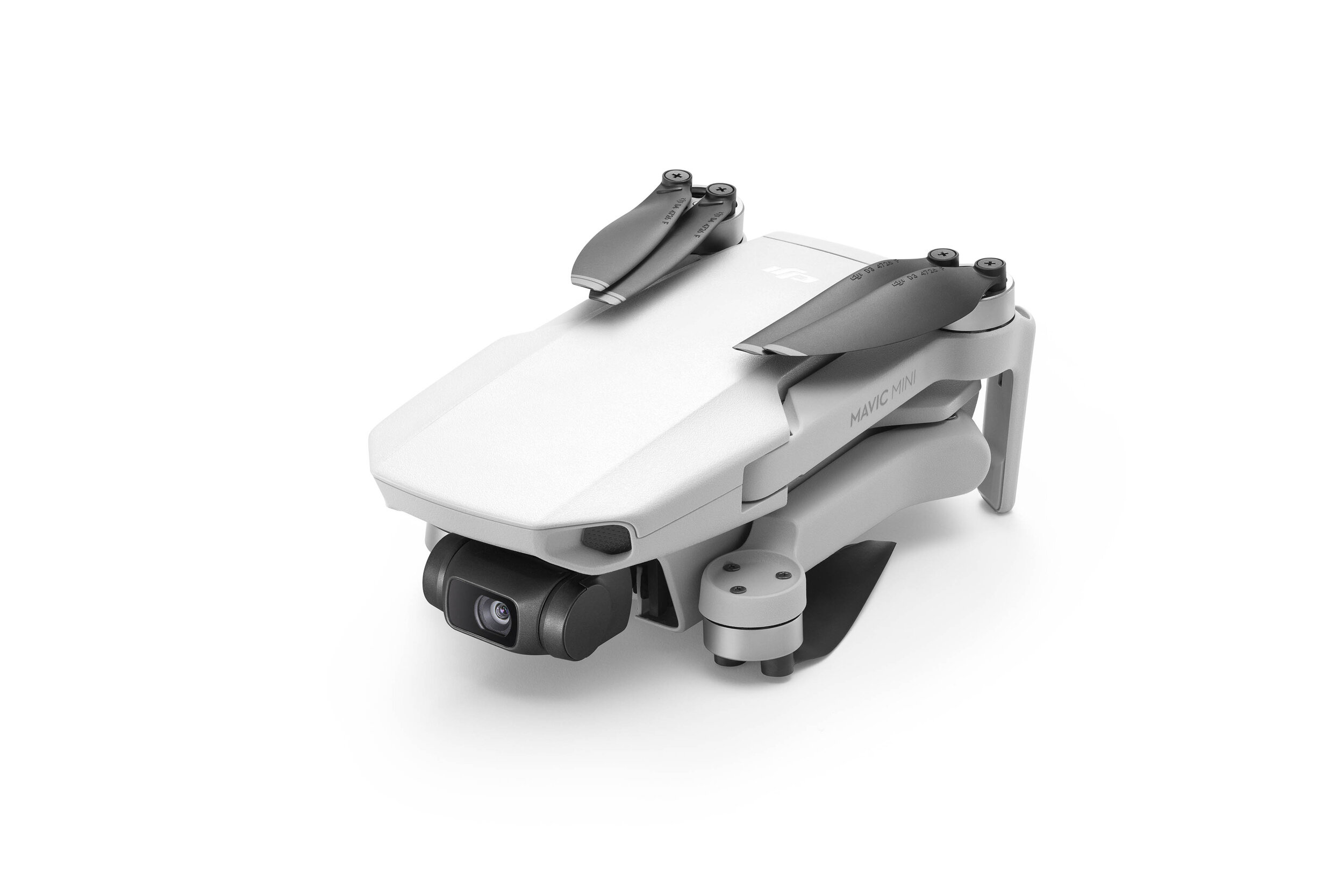

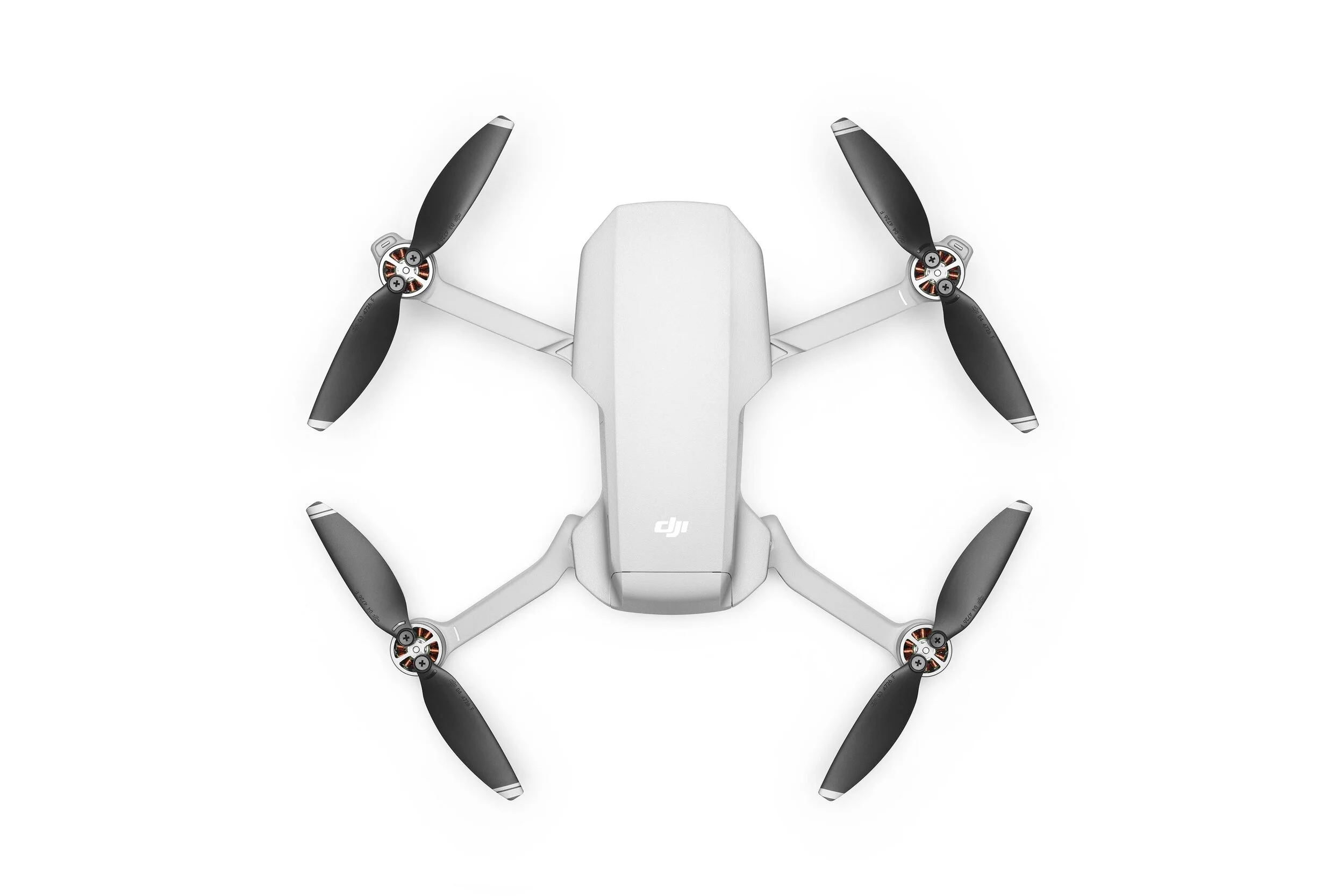

DJI Mavic Mini Raffle and Aerial Inspection Competition

£2,900.00

This product allows you one raffle entry into the prize draw for a DJI Mavic Mini Drone worth £369, aerial photographs including thermal imaging and an Ultra HD video of your home.

There is no limit on how many can be purchased.

Competition only available to residents of North East England

Please get in touch for terms and conditions.

This product allows you one raffle entry into the prize draw for a DJI Mavic Mini Drone worth £369, aerial photographs including thermal imaging and an Ultra HD video of your home.

There is no limit on how many can be purchased.

Competition only available to residents of North East England

Please get in touch for terms and conditions.

Aircraft

Takeoff Weight 249g

Dimensions Folded: 140×82×57 mm (L×W×H)

Unfolded: 160×202×55 mm (L×W×H)

Unfolded (with propellers): 245×290×55 mm (L×W×H)

Diagonal Distance: 213mm

Max Ascent Speed: 4 m/s (S Mode)

2 m/s (P Mode)

2 m/s (C Mode)

Max Descent Speed: 3 m/s (S Mode)

1.5 m/s (P Mode)

1 m/s (C Mode)

Max Speed: (near sea level, no wind) 13 m/s (S Mode)

8 m/s (P Mode)

6 m/s (C Mode)

Max Service Ceiling Above Sea Level: 3000m

Max Flight Time: 30 minutes

Max Wind Speed Resistance: 7.9 m/s (Scale 4)

Max Tilt Angle: 30° (S Mode)

18° (P Mode)

Max Angular Velocity: 150°/s (S Mode)

130°/s (P Mode)

Operating Temperature Range: 0° to 40°C (32° to 104°F)

Operating Frequency: Model MT1SS5: 5.725-5.850 GHz

Model MT1SD25: 2.400-2.4835 GHz, 5.725-5.850 GHz

Transmission Power (EIRP): Model MT1SS5

5.8 GHz:

Model MT1SD25

2.4 GHz:

5.8 GHz:

GNSS: GPS/GLONESS

Hovering Accuracy Range: Vertical: ±0.1 m (with Vision Positioning), ±0.5 m (with GPS Positioning)

Horizontal: ±0.3 m (with Vision Positioning), ±1.5 m (with GPS Positioning)

Gimbal

Mechanical Range Tilt: -110° to 35°

Roll: -35° to 35°

Pan: -20° to 20°

Controllable Range Tilt: -90° to 0° (default setting) -90° to +20° (extended)

Stabilization 3-axis (tilt, roll, pan)

Max Control Speed (tilt) 120°/s

Angular Vibration Range ±0.01°

Sensing System

Downward Altitude Range: 0.1-10 m

Operating Range: 0.5-10 m

Operating Environment: Non-reflective, discernable surfaces

Diffuse reflectivity (>20%)

Adequate lighting (lux>15)

Camera

Sensor 1/2.3” CMOS

Effective Pixels: 12 MP

Lens FOV: 83°

35 mm Format Equivalent: 24 mm

Aperture: f/2.8

Shooting Range: 1 m to ∞

ISO Range Video:

100-3200 (Auto)

100-3200 (Manual)

Photo:

100-1600 (Auto)

100-3200 (Manual)

Shutter Speed Electronic Shutter: 4-1/8000s

Still Image Size 4:3: 4000×3000

16:9: 4000×2250

Still Photography Modes: Single shot

Interval: 2/3/5/7/10/15/20/30/60 s

Video Resolution 2.7 K: 2720×1530 25/30 p

FHD: 1920×1080 25/30/50/60 p

Max Video Bitrate: 40 Mbps

Supported File System FAT32

Photo Format JPEG

Video Format MP4 (H.264/MPEG-4 AVC）

Remote Controller & Video Transmission

Operating Frequency Model MR1SS5: 5.725-5.850 GHz

Model MR1SD25: 2.400-2.4835 GHz, 5.725-5.850 GHz

Max Transmission Distance (unobstructed, free of interference): Model MT1SS5

5.8 GHz: 4000 m (FCC); 2500 m (SRRC)

Model MT1SD25

2.4 GHz: 2000 m (MIC/CE)

5.8 GHz: 500 m (CE)

Operating Temperature Range: 0° to 40°C (32° to 104°F)

Transmission Power (EIRP): Model MT1SS5

5.8 GHz:

Model MT1SD25

2.4 GHz:

5.8 GHz:

Battery Capacity: 2600 mAh

Operating Current/Voltage: 1200 mA 3.6 V (Android)

700 mA 3.6 V (iOS)

Supported Mobile Device Size: Max length: 160 mm

Max thickness: 6.5-8.5 mm

Supported USB Port Types: Lightning, Micro USB (Type-B), USB-C

Video Transmission System: Enhanced Wi-Fi

Live View Quality: 720p@30fps

Max. Bitrate: 4 Mbps

Latency (depending on environmental conditions and mobile device): 170-240 ms

Charger

Input: 100-240 V, 50/60 Hz, 0.5A

Output: 12 V 1.5 A / 9V 2A / 5V 3A

Rated Power: 18 W

Intelligent Flight Battery

Capacity: 2400 mAh

Voltage: 7.2 V

Max Charging Voltage: 8.4 V

Battery Type: Li-ion 2S

Energy: 17.28 Wh

Net Weight: 100 g

Charging Temperature Range: 5° to 40°C (41° to 104°F)

Max Charging Power: 24 W

Intelligent Flight Battery (1100 mAh)

Capacity: 1100 mAh

Voltage: 7.6 V

Max Charging Voltage 8.7 V

Battery Type: LiPo 2S

Energy: 8.36 Wh

Net Weight: 50 g

Charging Temperature Range: 5° to 40°C (41° to 104°F)

Max Charging Power: 18 W

APP

Name: DJI Fly

APP Required Operating System: iOS v10.0 or later Android v5.0 or later

Supported SD Cards: microSD Class 10 or UHS-1 rating with the above write speed better than 20MB/s required.

Recommended microSD Cards:

16G: Sandisk Extreme, Lexar 633x

32G: SamSung Pro Endurance, SamSung Evo Plus, Sandisk Industrial, Sandisk Extreme V30 A1, Sandisk Extreme Pro V30 A1, Lexar 633x, Lexar 667x.

64G: SamSung Pro Endurance, SamSung Evo Plus, Sandisk Extreme V30 A1, Lexar 633x, Lexar 667x, Lexar 1000x, Toshiba EXCERIA M303 V30 A1, Netac Pro V30 A1

128G: SamSung Pro Plus, SamSung Evo Plus, Sandisk Extreme V30 A1, Sandisk Extreme Plus V30 A1, Lexar 633x, Lexar 667x, Lexar 1000x, Toshiba EXCERIA M303 V30 A1, Netac Pro V30 A1

 256G: Sandisk Extreme V30 A1
